UPDATED: Canon Kembangkan Sensor CMOS 250 Megapixel Ukuran APS-H

Bildschirmfoto 2015-09-07 um 06.48.58

Canon Jepang baru saja mengumumkan bahwa mereka telah mengembangkan sensor baru dengan resolusi hingga 250 Megapixel beruukuran APS-H(29.2 x 20.2 mm, 19,580 x 12,600 pixels). Ukuran APS-H lebih kecil dari Full Frame. Sensor ini mampu membaca 1,25 miliar piksel per detik. Saat ini kamera Canon EOS 5DS R memiliki resolusi tertinggi yaitu 50MP pada sensor Full Frame, seperlimanya dari sensor baru ini.

Ketika dipasang di kamera, sensor baru yang sedang dikembangkan ini mampu menangkap gambar dan memungkinkan membedakan huruf yang ada di sisi sebuah pesawat terbang pada jarak sekitar 18 km dari location pengambilan gambar.

Belum tahu kapan akan dipasang pada kamera komersial untuk fotografi, yang pasti untuk awal-awal hanya akan digunakan untuk keperluan khusus seperti industri dan keamanan. Berikut press release dari Canon :

TOKYO, September 7, 2015
Canon Inc. announced today that it has developed an APS-H-size (approx. 29.2 x 20.2 mm) CMOS sensor incorporating approximately 250 million pixels (19,580 x 12,600 pixels), the world’s highest number of pixels1 for a CMOS sensor smaller than the size of a 35 mm full-frame sensor.

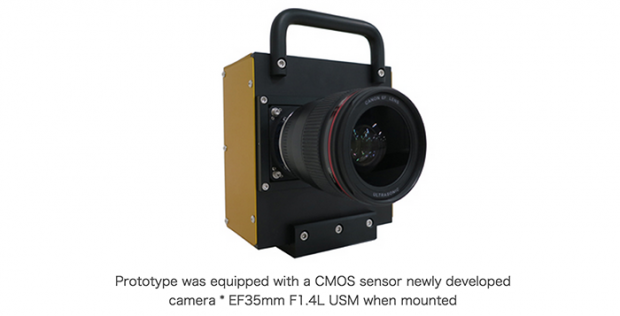

When installed in a camera, the newly developed sensor was able to capture images enabling the distinguishing of lettering on the side of an airplane flying at a distance of approximately 18 km from the shooting location.2

With CMOS sensors, increases in pixel counts result in increased signal volume, which can cause such problems as signal delays and slight discrepancies in timing. The new Canon-developed CMOS sensor, however, despite its exceptionally high pixel count, achieves an ultra-high signal readout speed of 1.25 billion pixels per second, made possible through such advancements as circuit miniaturization and enhanced signal-processing technology. Accordingly, the sensor enables the capture of ultra-high-pixel-count video at a speed of five frames per second. Additionally, despite the exceptionally high pixel count, Canon applied its sensor technologies cultivated over many years to realize an architecture adapted for miniaturized pixels that delivers high-sensitivity, low-noise imaging performance.

Video footage captured by the camera outfitted with the approximately 250-megapixel CMOS sensor achieved a level of resolution that was approximately 125 times that of Full HD (1,920 x 1,080 pixels) video and approximately 30 times that of 4K (3,840 x 2,160 pixels) video. The exceptionally high definition made possible by the sensor lets users crop and magnify video images without sacrificing image resolution and clarity.

Canon is considering the application of this technology in specialized surveillance and crime prevention tools, ultra-high-resolution measuring instruments and other industrial equipment, and the field of visual expression.

Bildschirmfoto 2015-09-07 um 06.48.55

Update :

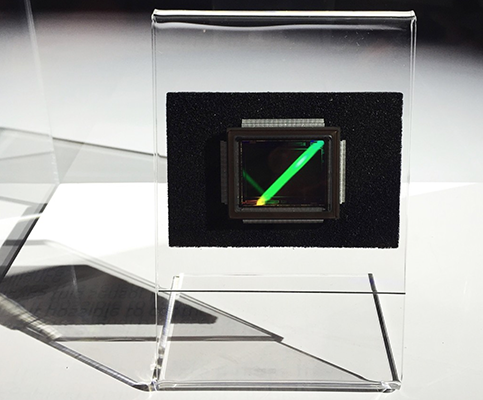

Gambar berikut adalah wujud asli sensor Canon 250MP, diletakkan di sebuah balik kaca pada sebuah expo 2015 di Javitz pusat kota NYC. Sekarang kita yakin bahwa Canon benar-benar akan menggunakan resolusi raksasa gila pada kamera yang akan dilepas kira-kira tahun depan atau 2 tahun lagi.

Bildschirmfoto 2015-09-09 um 20.40.45
